Electrical Components GPPS HP8250 Transparent High Impact Polystyrene Resin

Basic Information
Model Number: GP525
Document: HP8250 RESIN.pdf
Minimum Order Quantity: 800-1200KG
Price: 1300-1500USD
Packaging Details: BAG
Delivery Time: 5-25DAYS
Payment Terms: TT
Get Best Price
Chat Now
Detail Information
Impact Strength: High Flammability: Self-extinguishing
Elongation At Break: 10 - 50% Weather Resistance: Poor
Applications: Packaging, Toys, Household Items Density: 1.04 G/cm3
Flexural Strength: 3,500 - 4,500 Psi Material: Polystyrene

Product Description

Product Description:

General level of polystyrene can be utilized in a wide range of applications including daily necessities, electrical components, instrument shells, toys, lamps, household appliances, stationery, cosmetics containers, indoor and outdoor decorations, fruit trays, optical components (such as prisms, lenses, and lens windows), molding, headlights, telecom accessories, electrical frequency capacitor films, high-frequency insulation materials for containers, TV guides, chemical containers, and more.

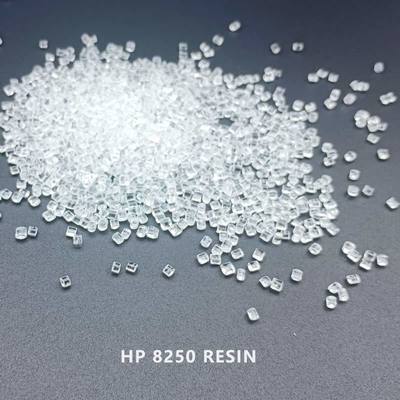

Electrical Components GPPS HP8250 Transparent High Impact Polystyrene Resin 0
Features:

High impact refers to a significant and noticeable effect or influence that a particular action or event has on a certain situation or outcome. It indicates a strong and powerful result that can create a lasting impression or bring about substantial changes.Normal flow, on the other hand, is the default behavior of elements on a web page or in a document without any specific styling or positioning applied to them. It refers to the standard way in which content is displayed and arranged within the layout, following the natural order of the elements in the document.

Technical Parameters:
Property Test Method Test Condition Unit High Impact PS
Melt Flow Index ASTM D-1238
ISO 1133
200 °C X 5kg g/10 min 5.5 | 5.5 | 3.0
Izod Impact Strength ASTM D-256
ISO 180
23 °C , 6.4mm Thick,Notched
23 °C , 4mm Thick,Notched
kg-cm/cm
kJ/m2
13.0 | 16.0 | 16.0
11.0 | 13.0 | 12.0
Charpy Impact Strength ISO-179 23 °C,4mm Thick GPPS Unnotched , 4mm Thick,HIPS Notched kJ/m2 10.0 | 12.5 | 11.5
Tensile Strength ASTM D-638
ISO 527
23 °C , 5mm/min
23 °C , 20mm/min
kg/cm2
MPa
245 | 230 | 240
25 | 25 | 25
Tensile Modulus ASTM D-638
ISO 527
23 °C , 1mm/min
23 °C , 1mm/min
kg/cm2
MPa
19000 | 18000 | 18000
2200 | 2200 | 2250
Tensile Elongation ASTM D-638
ISO 527
23 °C , 5mm/min
23 °C , 20mm/min
% 55 | 55.0 | 55
55 | 55 | 55
Flexural Strength ASTM D-790
ISO 178
23 °C , 1,2mm/min Span 50.8mm
23 °C , 2mm/min Span 64mm
kg/cm2
MPa
450 | 420 | 440
44 | 42 | 47
Flexural Modulus ASTM D-790
ISO 178
23 °C , 1.2mm/min Span 50.8mm
23 °C , 2mm/min Span 64mm
kg/cm2
MPa
20000 | 19000 | 19000
2100 | 2100 | 2100
Heat Deflection Temperature ASTM D-648
ISO 75/A
Unannealed, 120°C /h,1.8MPa, 3.2mm Thick
Annealed 80°C *2hr, 120°C /h, 1.8MPa, 3.2mm Thick
Unannealed, 120°C /h, 1.8MPa 4mm Thick
Annealed 80°C *2hr, 120°C /h, 1.8MPa 4mm Thick
°C 76 | 73 | 76
90 | 89 | 90
73 | 71 | 74
91 | 89 | 91
Vicat Softening Point ASTM D-1525
ISO 306
Annealed 80°C *2hr, 10N 50°C /h °C 98 | 97 | 100
Residual Monomer -- -- ppm max 500 | 500 | 500
Flammability UL-94 -- -- 1.5mm HB All Color | 1.5mm HB All Color | 1.5mm HB All Color
Applications:

Electrical appliance housing refers to the outer casing or enclosure that contains components such as wires, circuits, and other parts of an electrical appliance. It serves to protect the internal components from external elements and to ensure the safety of users.Terminal housing is a protective enclosure that houses electrical terminals, connectors, or block terminals. It helps to secure the connections, prevent accidental contact with live components, and enhance the overall safety of the wiring system.The panel of a computer host is the front or side surface that houses various components such as power buttons, USB ports, audio jacks, and status indicators. It provides easy access to these features and helps in organizing the connections and peripherals of the computer.

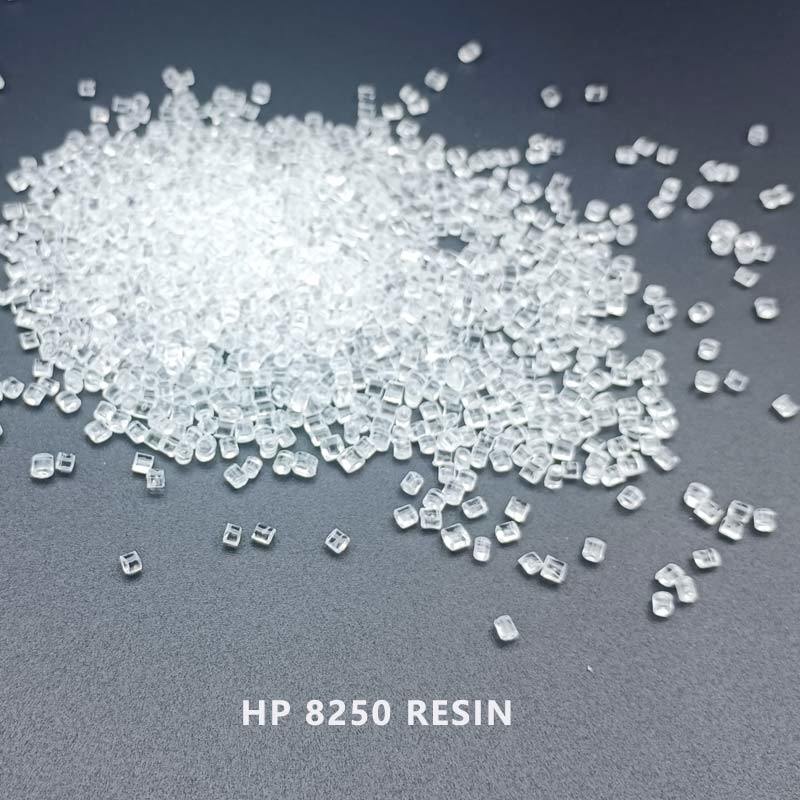

Electrical Components GPPS HP8250 Transparent High Impact Polystyrene Resin 1
